Concrete Repair

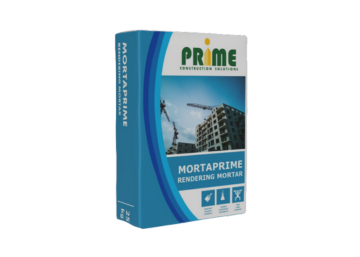

MORTAPRIME RENDERING MORTAR
MORTAPRIME RENDERING MORTAR
MORTAPRIME RENDERING MORTAR is a fine rendering mortar for correction and repair of surface defects on concrete. It’s non-shrink property and excellent workability allows for its vertical application of up to 30mm thickness without the need for a formwork.
1. Ensure a proper substrate preparation. Prior to application, wet substrate well with clean water.
2. Using a plastic container, place 6 liters of clean water in the container and add 25kg of MORTAPRIME RENDERING MORTAR
3. Mix thoroughly using a slow speed electric drill fitted with paddle for 3 – 5 minutes until desired homogeneous paste is achieved.
4. Apply mortar with a stainless-steel trowel. Thickness per layer should be from 2-10 mm per application depending on the requirement.

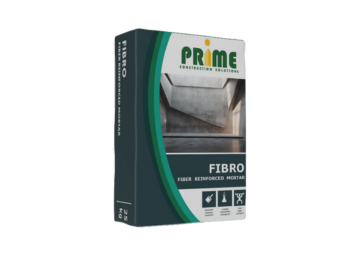

FIBRO FIBER REINFORCED
FIBRO FIBER REINFORCED MORTAR
FIBRO FIBER REINFORCED MORTAR is a fiber reinforced, non-shrink, cementitious repair mortar capable of repairing concrete damages, honeycombs and weakened structures. This is a high technology structural repair material which can significantly increase any structure’s Factor of Safety (FoS).
1. Ensure a proper substrate preparation. Prior to application, wet substrate well with clean water.
2. Using a plastic container, place 4.5 – 5 liters of clean water in the container and add 25kg of FIBRO FIBER REINFORCED MORTAR.
3. Mix thoroughly using a slow speed electric drill fitted with paddle for 3 – 5 minutes until desired homogeneous paste is achieved.
4. Apply mortar with a stainless-steel trowel.

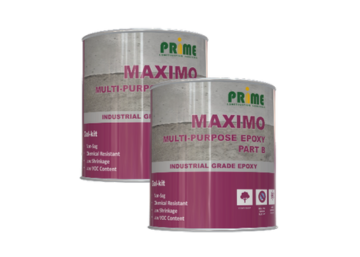

MAXIMO MULTI PURPOSE
MAXIMO MULTI-PURPOSE EPOXY
MAXIMO MULTI-PURPOSE EPOXY is a solvent-free, moisture tolerant, non-sag epoxy bonding agent and repair mortar, with non-sag capability of above 18mm. It can be used for vertical, horizontal and overhead applications.
1. Substrate must be clean, sound, and free from foreign material such as oil, curing compound, chemicals, coatings, wax and other materials. Remove dust preferably using a vacuum.
2. Mix part A and part B with 1:1 ratio.
3. For thin layer adhesive, apply the mixed adhesive to the prepared surface with a spatula or steel trowel. After application, you may now press the other material on top of the adhesive. Apply pressure during curing.

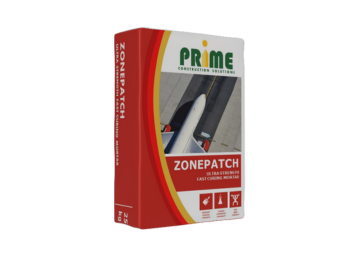

ZONEPATCH ULTRA STRENGTH
ZONEPATCH ULTRASTRENGTH FAST CURING MORTAR
ZONEPATCH ULTRASTRENGTH FAST CURING MORTAR is rapid setting cementitious repair mortar suitable for heavy duty pavement/flooring corrections. The state-of-the art mix of special additives allow for the rapid setting and compressive strength gain in 2-3 hours, making it perfect for ultra fast project turn-arounds for pavements, floorings and runways.
1. Substrate must be clean, sound, and free from foreign materials.
2. Apply 2 coats of BONCRETE BONDING AGENT to the surface.
3. Measure 4.0 to 4.5 liters of water to the powder mixture.
ZONEPATCH ULTRASTRENGTH FAST CURING MORTAR can be applied up to 100 mm thickness in a single application.
| MORTAPRIME RENDERING MORTAR | FIBRO FIBER REINFORCED MORTAR | MAXIMO MULTI-PURPOSE EPOXY | ZONEPATCH ULTRASTRENGTH FAST CURING MORTAR | |
|---|---|---|---|---|
| Medium | Powder | Powder | Paste | Powder |
| Packaging | 25KG Bag | 25KG Bag | Gal Kit | 25KG Bag |
| Compressive Strength | 2,100 psi @ 28 days | 6,490 psi @ 28 days | 9,020 psi @ 3 days | 8,950 psi @ 3 days |
| Tensile Strength | 6,500 psi @ 28 days | 8,000 psi @ 28 days | 3,500 psi @ 3 days | 11,000 psi @ 3 days |
| Curing Time | 28 Days | 28 Days | 3 Days | 3 Days |

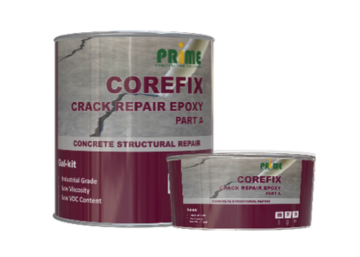

COREFIX CRACK REPAIR EPOXY INJECTION
COREFIX CRACK REPAIR EPOXY INJECTION
COREFIX CRACK REPAIR EPOXY is a 100% solid, solvent free, non-shrink, heavy duty two-pack epoxy resin matrix of superior quality which is specifically formulated and intended to fill in cracks, holes, and form coving in residential, commercial, industrial environments.
1. Mix COREFIX CRACK REPAIR EPOXY Part A with Hardener Part B. The mix ratio is 2:1. Always add Part B into Part A.
2. Use a putty knife or a small scraper and ensure thorough mixing when mixing the product.
Pot Life: 45-55 minutes
Hard Dry: 24 hours
Full Cure: 3 days

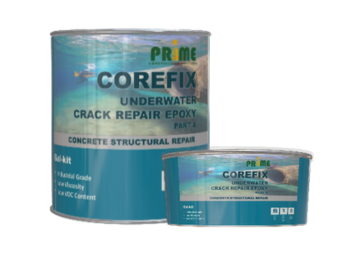

COREFIX CRACK REPAIR EPOXY UNDERWATER
COREFIX CRACK REPAIR EPOXY UNDERWATER
COREFIX CRACK REPAIR EPOXY UNDERWATER is a 100% solid, solvent free, non-shrink, heavy duty two-pack epoxy resin matrix of superior quality which is specifically formulated and intended to fill in cracks, holes, and form coving in residential, commercial, industrial underwater environments.
1. Mix COREFIX CRACK REPAIR EPOXY Part A with Hardener Part B. The mix ratio is 2:1. Always add Part B into Part A.
2. Use a putty knife or a small scraper and ensure thorough mixing when mixing the product.
Pot Life: 35-40 minutes
Hard Dry: 6-7 minutes
Full Cure: 3 days

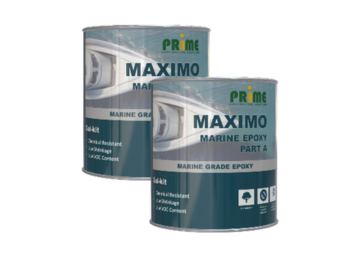

MAXIMO MARINE EPOXY
MAXIMO MARINE EPOXY
MAXIMO MARINE EPOXY is a high-grade two-component epoxy filler which can be used on a wide variety of surfaces including wood, aluminum, steel and fiber. It is specially formulated to provide a hard wearing and water resistant repair, perfect for repairing osmosis damage, holes and scratches on boat hulls.
1. Mix MAXIMO MARINE EPOXY Part A with Hardener Part B. The mix ratio is 1:1. Always add Part B into Part A.
2. For best performance abrade and degrease all surfaces. The two components should be mixed thoroughly. Do not mix more than will be used in 15 min.

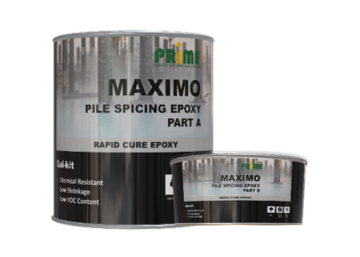

MAXIMO PILE SPLICING EPOXY
MAXIMO PILE SPLICING EPOXY
MAXIMO PILE SPLICING EPOXY Is a rapid set liquid epoxy binder for use in civil engineering applications where early development of high strength is essential. Typical application is splicing of bridge piles where fast development of high compressive and impact strength is required so that pile driving can be resumed as soon as possible.
Mix MAXIMO PILE SLICING EPOXY Part A with Hardener Part B. The mix ratio is 3:1. Always add Part B into Part A.
2. For best performance abrade and degrease all surfaces. The two components should be mixed thoroughly. Do not mix more than will be used in 5 mins.

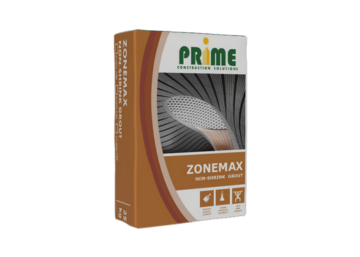

ZONEMAX NON-SHRINK GROUT
ZONEMAX NON SHRINK GROUT
ZONEMAX NON SHRINK GROUT is a high strength, flowable, cementitious grout with dual-shrinkage compensation properties specially formulated for high local ambient temperatures. This is ideal for key repair of concrete structure, machine equipment foundation and anchors.
Comes in variants of 6,000 psi, 8,000 psi, and 11,000 psi of Compressive Strength.
1. All surfaces must be clean, sound and free from foreign materials. Chip all loose and damaged concrete. Prior to application, damp substrate well with wet sponge or cloth.
2. Using a plastic container, place 3.5-4.5 liters of clean water in the container and add 25 kg of ZONEMAX NON SHRINK GROUT.
